Top Benefits of Non-Woven Warp Knitting Machines

June 25, 2025

In the world of technical textiles and industrial fabrics, the non-woven warp knitting machine is rapidly gaining attention for its efficiency, flexibility, and cost-effectiveness. As manufacturing demands evolve, companies are turning to high-performance solutions to stay competitive – and that’s where Grand Star steps in.

At Grand Star, we specialize in advanced warp knitting machines, including our widely trusted FB Stitch-Bonding Machine. With over over 13 years of experience, we’ve helped manufacturers worldwide streamline production and improve fabric quality. In this post, we’ll walk you through the top benefits of using a non-woven warp knitting machine, showcasing how it’s transforming the textile industry.

High Efficiency Across Various Working Widths

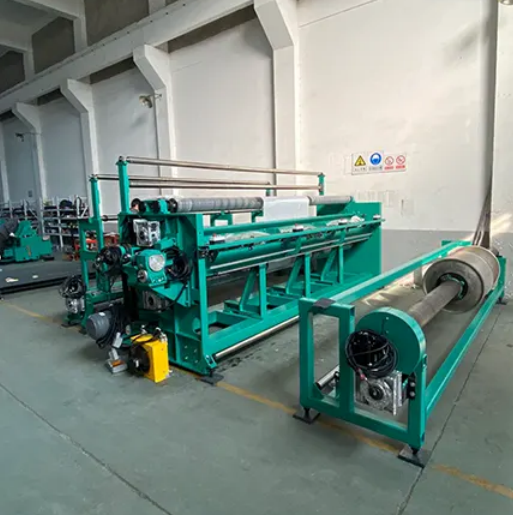

Our FB Stitch-Bonding Machine comes in multiple working widths:

2000mm, 2800mm, 3600mm, 4400mm, 4800mm, 5400mm, and 6000mm. This range allows textile manufacturers to choose a configuration that fits their production volume and facility space.

✅ More output, less downtime

✅ Fewer adjustments during production

✅ Ideal for large-scale non-woven fabric production

These machines are designed to run continuously, maintaining high speeds without compromising fabric quality – a key advantage for industries relying on fast turnarounds.

Flexible Gauge and Knitting Options

Another reason manufacturers choose our non-woven warp knitting machines is the wide selection of gauge options: F7, F12, F14, F16, F18, F20, and F22. Paired with multiple knitting elements – such as compound needle bars, closing wire bars, and knock-over sinker bars – these machines can be customized for various fabric textures and weights.

Precision Pattern Control

The N-drive system with a single pattern disc offers:

• Smooth operation for repeatable pattern accuracy

• Quick changeover for different designs

• Better tension control during knitting

This precision gives manufacturers the creative and functional freedom to produce textiles tailored for automotive, medical, home furnishing, and industrial use.

Electronically Controlled Yarn Systems

Modern production demands real-time control and quick responsiveness. That’s why our non-woven warp knitting machines come equipped with electronically controlled systems for both yarn let-off and fabric take-up.

Benefits include:

✅ Accurate tension and fabric density control

✅ Reduced waste due to yarn breakage detection

✅ Optimized energy consumption through frequency converters

These upgrades not only boost efficiency but also enhance product consistency – especially important for high-quality technical textiles.

Strong Motion Control and Smart Interfaces

At Grand Star, innovation is at the core of what we do. Our warp knitting machines feature an integrated computer system that manages main drive, yarn feeding, and take-up functions.

Operator Interface Highlights

• User-friendly touchscreen display

• Real-time performance monitoring

• Easy troubleshooting and adjustments

These features empower operators of all skill levels to run the machines efficiently, reduce setup times, and prevent costly production delays.

Energy-Saving Power Systems

Energy efficiency is a growing priority in today’s textile industry, and our non-woven warp knitting machines are designed with that in mind. At Grand Star, we’ve carefully optimized every component to reduce energy waste while maintaining high-speed, high-precision performance.

Depending on the machine’s working width, the main motor power ranges from 13 KW to 18 KW. This allows manufacturers to achieve strong, stable output without overloading energy resources – a perfect combination of productivity and sustainability.

• Built-in power-failure safety features help protect both the machine and the fabric during unexpected outages, minimizing downtime and material loss.

• Single-speed control via an integrated frequency converter ensures smooth transitions during operation and reduces energy surges.

• Reliable, regulated power delivery supports consistent results across various applications, including hygiene textiles, automotive linings, and filtration materials.

With consistent power regulation, fabric quality remains stable even during long production runs. This not only protects your product integrity but also helps reduce rework and operational costs. Whether you’re producing lightweight non-woven fabrics or dense industrial layers, the energy-saving system helps maintain precise control from start to finish.

Smooth Fabric Handling and Batching

Fabric handling is a critical stage in the production cycle – and often one of the most challenging. Uneven rolls, improper tension, or batching delays can cause unnecessary waste and slow down the process. That’s why our non-woven warp knitting machines come with a highly efficient standalone batching device to streamline fabric collection.

• Maximum batch diameter of 914mm (36 inches) allows for extended production runs before roll changes are needed.

• Friction drive system with pressure roller ensures that the fabric is guided gently and evenly, preventing wrinkles or tears.

• Integrated frequency converter enables smooth, adjustable speed control for batching, which helps match the pace of fabric take-up with production speed.

The result is neatly wound fabric rolls that are easy to store, transport, or send for further processing. By solving common handling problems, this system helps boost productivity while maintaining the quality of every yard produced. With Grand Star’s batching solution, your non-woven production line runs cleaner, smoother, and more efficiently – from the first stitch to the final roll.

Installation, Training & Global After-Sales Support

We know that even the best equipment needs solid support to achieve its full potential. That’s why Grand Star offers full technical support for every non-woven warp knitting machine we deliver.

Our service includes:

✅ Detailed manuals and video libraries

✅ On-site training tailored to your staff

✅ Real-time online assistance

In areas without local service teams, we provide immediate online support. If needed, our engineers are dispatched from the nearest hub to your facility, ensuring smooth operations and minimal downtime.

Why Choose Grand Star?

We’re more than just a manufacturer – we’re a partner in your production success. With our expertise in warp knitting technology and strong customer service commitment, you gain:

✅ Custom machine configuration

✅ Fast response to technical issues

✅ Ongoing updates and innovation insights

Our non-woven warp knitting machines are built to last, adapt, and perform – helping you grow your business with confidence.

Final Thoughts: A Smart Move for Modern Textile Production

The non-woven warp knitting machine is more than just a piece of equipment – it’s a competitive advantage. From fabric consistency to production speed, Grand Star’s FB Stitch-Bonding Machine delivers top performance in every area. If you’re looking to scale up your textile operation with advanced, efficient, and reliable machinery, we invite you to connect with us. At Grand Star, your success is our mission.
