Key Textile Uses of Raschel Jacquard Machine

August 25, 2025

Raschel Jacquard Machine capability is reshaping modern textile operations, and at Grand Star Technology we design, build, and support systems that turn ideas into scalable production with confidence. This article explains where the machine creates the most value, how our Raschel Jacquard Textile with fallplate RJPC 4F is engineered for real factory conditions, and why our service model protects your investment long after installation.

Where the Raschel Jacquard Machine Creates the Most Value

Customers across the value chain choose this platform for one simple reason: it translates intricate patterns into repeatable, saleable fabric with minimal fuss. Patterns stay sharp. Yarn delivery remains steady. Changeovers are predictable and teachable. When product lines expand or seasonal peaks arrive, a high-speed Raschel Jacquard knitting machine helps teams scale without losing control of quality.

✅  Core Application Scenarios

•  Home Textiles- Curtains, bed linens, and upholstery that need clean pattern edges and a consistent hand feel from roll to roll.
•  Technical Textiles- Mesh, nets, and filtration fabrics where open structures must hold shape and aperture size across long runs.
•  Apparel Manufacturing- Intricate Jacquard effects for high-fashion styles and robust panels for activewear and sportswear.
•  Automotive Industry- Interior linings and protective covers that must meet repeatable specs and withstand daily use.
•  Medical Textiles- Specialized constructions for healthcare applications that depend on controlled loops and uniform density.
•  Industrial Use- Durable textiles for construction and agriculture where stability, longevity, and reliable batches matter.

These categories share three pain points: pattern accuracy, yarn tension stability, and downstream consistency during batching and finishing. An industrial Raschel Jacquard machine for technical textiles solves these with precise electronic control from let-off to take-up, so every roll aligns with your spec sheet – and your customer’s expectations.

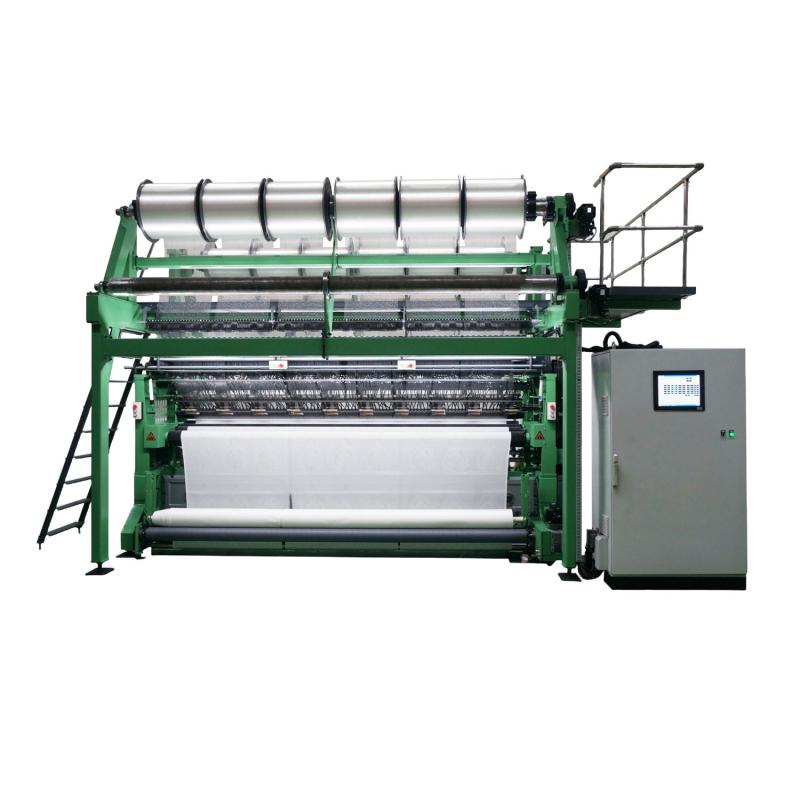

Inside the RJPC 4F: Controls That Keep Quality Stable

The RJPC 4F was built for production floors, not showrooms. It balances pattern flexibility with operator-friendly control and steady take-up, which is how you get quality that repeats across shifts and sites.

At the heart of the platform is a working width of 6300 mm (248 inches), available in E18 and E24 gauges. This range helps you match structure and density targets without overcomplicating scheduling. Yarn delivery is handled by three electronically controlled let-off devices for ground guide bars, each with multi-speed functionality to keep flow smooth during pattern transitions and startup. For pattern creation, the Pattern Device EL provides fully electronic guide bar control for both ground and Jacquard bars, which removes guesswork and keeps pattern edges clean.

Operator-Friendly Digital Control

All functions are configured and managed through the GrandStar® Command System, our intuitive operator interface. Teams can set parameters, store recipes, and standardize best practices electronically. This shortens setup time, speeds up training, and lowers the risk of knowledge gaps between shifts. New operators learn the essentials quickly; experienced technicians gain a fast path to fine-tuning.

Downstream, fabric stability depends on transport that does not slip or deform the web. The electronically regulated take-up uses four rollers covered in black grip tape, driven by a geared motor for precise control. The web stays true. Roll build is even. Storage and handling become easier, and the risk of rework goes down.

To close the loop, the independent batching device winds to a maximum diameter of 685 mm (27″). This keeps batches compact and consistent, which helps logistics and protects edge quality during movement.

✅  Specifications That Matter on the Floor

•  Working width: 6300 mm (248″); gauges: E18 / E24
•  Let-off: three electronically controlled units with multi-speed control
•  Patterning: Pattern Device EL with fully electronic guide bar control
•  Control: GrandStar® Command System for unified digital setup
•  Take-up: four rollers with black grip tape, geared-motor drive
•  Batching: up to Ø 685 mm (27”)
•  Electrical: speed-regulated drive, 7.5 KW total load, 380V ±10% three-phase supply
•  Working conditions: 25℃ ±3℃, 65% ±10% humidity, 2000–4000 KG/㎡ floor pressure
•  Creel: custom-designed yarn supply system tailored for Jacquard functionality
•

These details may look simple, but together they remove the typical roadblocks: tension drift, pattern distortion, and inconsistent roll build. The result is steady throughput and on-time delivery without constant intervention.

What You Can Expect from Grand Star Technology

Buying a Raschel Jacquard Machine is the start; reaching stable output is the milestone that matters. We pair the RJPC 4F with an installation and training program that blends local service teams, online resources, and structured on-site sessions. The goal is practical: get your team to confident, repeatable operation – fast.

Our after-sales network currently covers Turkey, India, Vietnam, Indonesia, and the USA, and we are expanding. If your region does not yet have a local team, you still receive real-time online support as your first line of assistance. When hands-on help is required, we dispatch engineers for on-site support. To keep lines tuned over time, our engineers conduct regular visits every 1-2 months. These check-ins reinforce maintenance routines, align settings with seasonal or product shifts, and surface improvement ideas before issues grow.

We recognize the real-world constraints on every factory: tight sampling windows, limited operator time, and pressure to release new styles without sacrificing base production. That is why we emphasize clean documentation inside the GrandStar® Command System, simple parameter recipes, and step-by-step diagnostics that match what teams actually face at 2 a.m. on a busy night. When you change styles or adjust gauges, you do it with confidence and with a clear path back to your known-good setup.

In day-to-day use, the RJPC 4F’s custom creel and precise let-off reduce small stops caused by yarn issues. The stable take-up and consistent batching help finishing and inspection work as planned. Operators spend less time fighting the line and more time delivering the fabric you promised. Managers see steadier OEE. Sales teams gain credibility because samples match production runs.

If you are planning new capacity, the platform’s clear electrical and environmental requirements also make layout decisions easier. You know the 7.5 KW load, the 380V ±10% three-phase supply, and the target temperature and humidity bands up front. Floor loading is defined at 2000-4000 KG/㎡, so civil and safety reviews proceed without surprises. These details shorten project lead times and reduce rework during commissioning.

Call to Action: If your roadmap includes expanded home textiles, technical mesh, or specialty apparel, talk to Grand Star Technology about the Raschel Jacquard Textile with fallplate RJPC 4F. We will map your target fabrics to the right gauge, settings, and training plan, then support your team as output ramps. Bring us your next style brief. Let’s convert it into stable production – faster, cleaner, and with the repeatability your customers expect.
