Reinforcement Geo Composite Machine Tips for Soil Stabilization

August 29, 2025

Reinforcement Geo Composite Machine performance sits at the heart of modern ground engineering, and at Grand Star Technology we design and build Raschel-based systems that give civil teams steady output and clean, repeatable mesh. From subgrade stabilization to protective layers, projects succeed when production is predictable. Below, we share grounded advice from our shop floor – what to choose, how to set up, and how to run day after day without drama.

1) Design Choices That Raise Reliability in a Reinforcement Geo Composite Machine

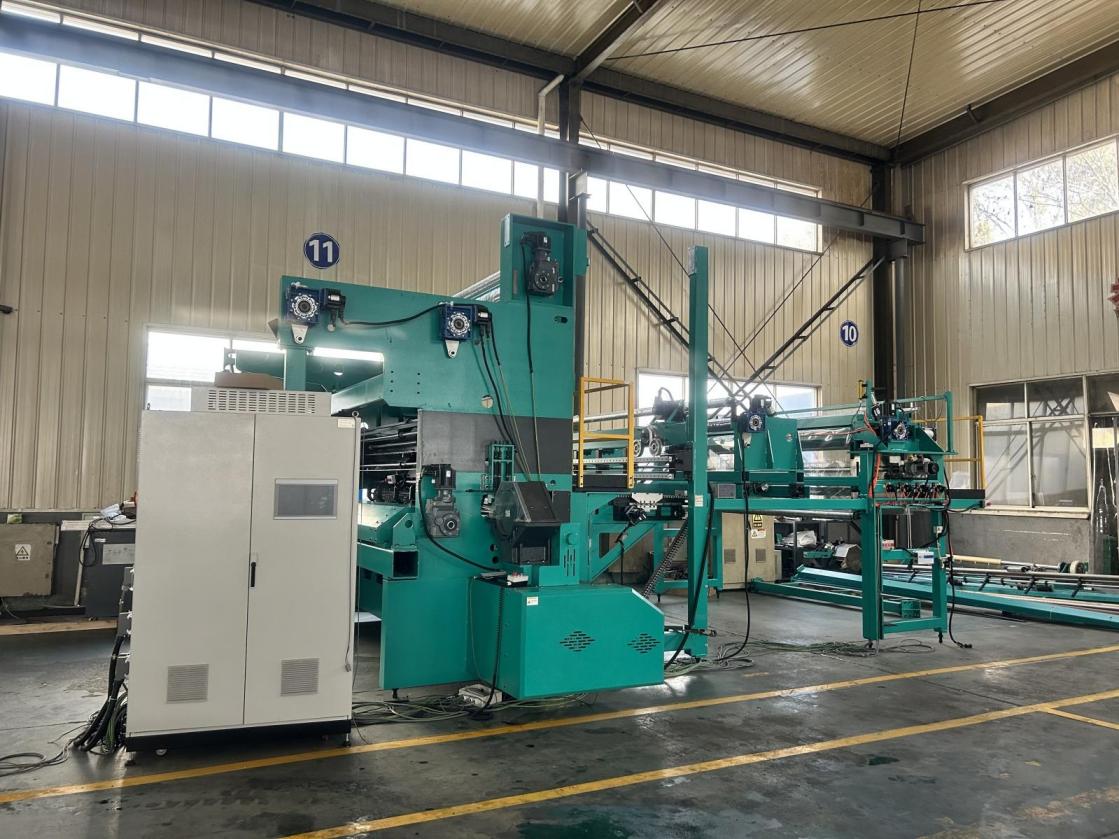

Civil work rewards consistency. Mesh must be uniform. Tensile behavior must be predictable. Production must be repeatable. Our Raschel Netting Machine (2–8 bars) is built with those facts in mind, balancing mechanical strength with sensible electronics so your line keeps pace with site schedules.

•  Working Width & Gauge: Lock These First

Choose width and gauge before you book trials. Our platform supports E6, E8, E12, and E18 gauges and working widths of 181″, 188″, 220″, 230″, and 275″. Wider widths help on long runs by lifting throughput. Finer gauges enable tighter meshes where separation or filtration is non-negotiable. Compound needles with GB1 to GB4 stitch-forming hold loops cleanly at the edges, improving bonding when layers are laminated in the composite.

•  Electronic Control & Safety: Fewer Surprises, Less Scrap

Variability is the hidden cost on any line. The GrandStar® (GrandStar COMMAND SYSTEM) lets operators set, program, manage, and modify electronic parameters without guesswork. Integrated Laserstop watches the process in real time, stopping faults before they mark a full roll. Electronics guide bar drive EL keeps pattern motion precise, while a speed-regulated drive smooths load changes. Together, these controls stabilize quality across full-width runs typical in highway, slope, and foundation projects.

•  Patterning Flexibility Without Complexity

You do not need a different machine for each mesh. Our layout supports a single-bar bar, knockover-cum-comb bar, slider bar, and a stitch comb bar; you can run 2/3/4/6/8 ground guide bars or 2 pattern bars with 4 ground guide bars. That range lets you tune aperture geometry to your soil behavior and drainage goals with minimal downtime. For teams comparing suppliers, this is where a warp knitting machine for geocomposites earns its keep: fast pattern changes with stable tension.

2) Installation, Setup, and Daily Practices That Keep Output Steady

Good hardware still needs good setup. We design the yarn path and motion systems so operators can make the right moves quickly – on busy production floors or near project hubs.

•  Yarn Feeding and Tension Control

Start with the feeders. Our system provides four warp beam positions in a free-standing arrangement, warped from sectional beams with a flange diameter of 812 mmx32″. Each fully mounted warp beam has one electronically controlled yarn let-off drive; the main let-off uses a geared motor for smooth tension. This matters when the geocomposite layer must later bond evenly across width – stable let-off delivers stable pores.

•  Take-up and Batching: Simple, Robust, Easy to Swap

The Fabric Take-up is electronically regulated with an antifriction drive. Gearing is driven by a servomotor and regulated by motion control, so draw is uniform as roll diameter grows. The batching device is a floor-standing cloth roller. Operators like it because swapping rolls is straightforward, and supervisors like it because it reduces changeover minutes that quietly erode capacity.

•  Electrical and Operating Conditions

At a glance: 25 kVA total connected load; 380 V ±10% three-phase supply; main power cord ≥ 4 mm² three-phase four-core with ground ≥ 6 mm². The oil supply uses an oil/water heat exchanger to stabilize temperature. Recommended operating window: 25 ℃ ± 6 ℃, 65% ± 10% humidity, and floor pressure 2000-4000 KG/㎡. Keep the machine in this window and it holds tight tolerances through long runs.

✅  Daily Operator Checklist (Fast Wins, Real Impact)

•  Set let-off tension profiles in the GrandStar COMMAND SYSTEM before yarn-up.
•  Clean and align Laserstop sensors to avoid false trips.
•  Match take-up servo parameters to roll diameter and target GSM.
•  Inspect guide bars and the stitch comb bar; remove lint for consistent loops.
•  Log run data at each roll change- trend tension and speed to spot drift early.

Small actions like these prevent the stop-start patterns that wear needles and raise scrap. If you expect overnight shifts, choose conservative ramp profiles; the yarn will thank you and so will your maintenance team. For geogrid-oriented products, many customers pair this checklist with documented settings for a Raschel netting machine for geogrids so new operators can reach steady state faster.

3) From Pilot to Production: How Grand Star Technology Stays With You

Scaling is where many lines stumble. A short pilot proves feasibility; a kilometer-scale order tests discipline. We structure training and service so your crew can move fast without losing control.

•  Installation, Training, and Local Help

We provide installation and training with coverage in 20+ countries, supported by local teams in Turkey, India, Vietnam, Indonesia, and the USA. Your engineers can learn through videos, manuals, online help, and on-site sessions. After start-up, our local service pairs on-site visits with regular inspections by skilled engineers. The focus is simple: keep tension systems, electronic drives, and safety sensors operating as specified so output remains predictable.

•  Where the Same Platform Also Works

While this article focuses on civil reinforcement, the Raschel platform also produces nets for agriculture, fishing, sports, and industrial safety. Those demanding uses sharpen our engineering: pattern precision, clean edges, dependable guide motion. The benefit returns to your Reinforcement Geo Composite Machine – more stable runs and fewer adjustments once a product is dialed in.

✅  What the Specs Mean for Your Day-to-Day

Bars and knitting elements include the stitch comb bar and options for 2/3/4/6/8 ground guide bars or 2 pattern bars with 4 ground guide bars. GB1-GB4 stitch-forming keeps mesh structure reliable across width. Speed-regulated drive avoids jolts that stretch yarn. The GrandStar COMMAND SYSTEM centralizes setup so senior operators can document parameters and new operators can load them, not improvise them. Add the integrated Laserstop, and you have eyes on quality while the machine works.

In practice, this package cuts two common pain points: unplanned stops and rework. Stops vanish when tension, take-up, and pattern drive move in sync. Rework shrinks when edges are clean and loops are consistent, because downstream lamination and bonding behave as expected.

Call-to-Action: Planning a line upgrade or a new site? Contact Grand Star Technology for a focused specification review and a live demonstration. We will match width, gauge, and bar configuration to your soil conditions and reinforcement targets, then help your team lock in daily settings. Turn predictable output into your competitive edge with a Reinforcement Geo Composite Machine that is built to run.
