Speed Meets Precision: New Advances in Weft Insertion Machine Technology

May 29, 2025

The textile industry is changing fast. At the heart of this transformation is the weft insertion machine. Known for its speed and accuracy, this machine plays a key role in modern fabric production. From clothing to industrial materials, weft insertion machines help create strong, smooth, and high-quality textiles.

Their design allows for faster weaving, less waste, and greater control over the final product. Manufacturers around the world are now investing in new models that offer even more precision and automation.

But what exactly makes these latest machines stand out? How are they reshaping production lines? And what does this mean for the future of textile manufacturing?

Let’s take a closer look.

The Evolution of Weft Insertion Technology

From Tradition to Innovation

Textile weaving has come a long way. In the past, weaving was slow and fully manual. Traditional looms produced simple patterns at low speeds. Today, weaving is fast, automated, and highly precise. Machines now handle complex fabrics that once took hours to complete by hand.

Why Speed and Precision Matter

In modern textile factories, speed is essential. But speed without accuracy leads to waste and defects. Precision ensures fabric quality, especially in high-demand sectors like fashion and automotive. The weft insertion machine is a key tool for balancing both. It allows producers to keep up with market needs without losing control of quality.

The Turning Point

The introduction of the weft insertion machine changed everything. It enabled high-speed weaving with accurate thread placement. As industries demand more efficiency, this technology continues to improve. It is now a core part of advanced textile machinery. The turning point came when machines could lay weft threads automatically, reducing manual errors and boosting productivity.

Enter the Game-Changer – Tricot Machine with Weft Insertion

Next-Gen Efficiency

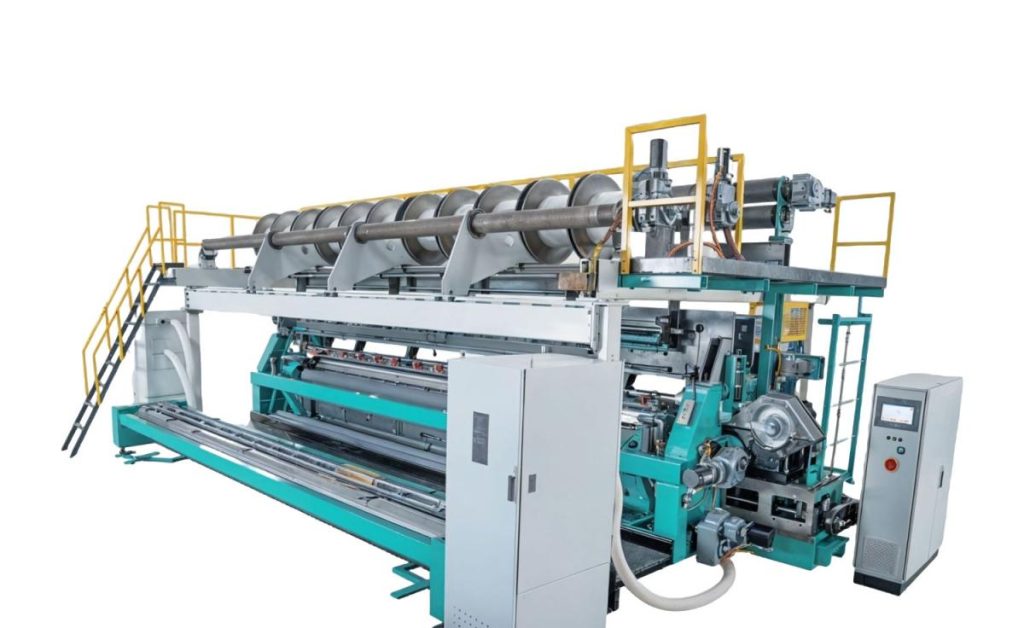

The Tricot Machine with Weft Insertion is built for today’s textile demands. It combines high speed with high accuracy. Compared to older models, it uses less energy and wastes fewer materials. This weft insertion machine allows factories to produce more in less time.

Designed for Performance

Every part of the machine is made for performance. From the needle bar to the electronic controls, each feature supports smooth operation. Automation plays a big role. Operators can adjust settings easily through a user-friendly interface. This design ensures consistent fabric quality, even during long production runs.

Bridging Innovation with Application

The Tricot Machine with Weft Insertion is more than a concept. It is already in use across many industries. From fashion to industrial fabrics, it proves its value daily. Its success lies in real-world performance, not just in design specs. Companies using this weft insertion machine report faster output and lower defect rates.

Inside the Machine – Structural Highlights

Bars and Knitting Elements

This weft insertion machine features several key components. The individual needle bar uses compound needles for precise knitting. The sinker bar ensures fabric stability and controls tension. Guide bars are made with carbon-fiber materials, making the machine lighter and more durable. Each element supports smooth, high-quality fabric formation.

Warp Beam Support System

The warp beam support is highly flexible. It comes in various sizes to meet different production needs. The standard setup includes 2 or 3 beams at 812 mm. Optional setups offer longer beams for wider fabric runs. This allows producers to switch between product types with ease.

Weft Insertion Mastery

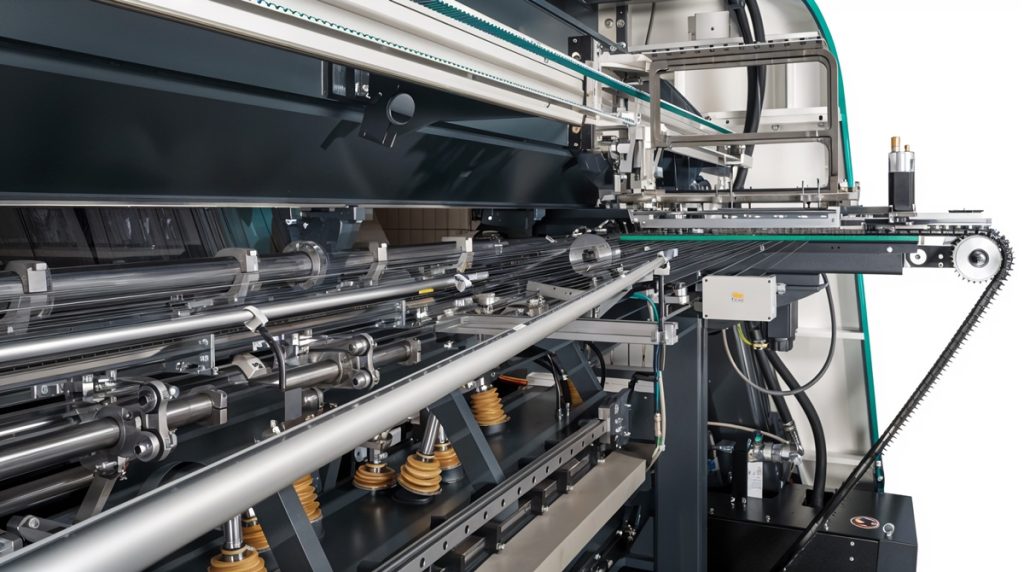

One of the core strengths of this machine is its weft-insertion system. The yarn-laying carriage handles 24 yarn ends at once. This ensures continuous fabric formation without stopping. It reduces downtime and boosts productivity. The even placement of threads also improves fabric consistency and quality.

Smart Control, Seamless Operation

GrandStar® Command System

The Tricot Machine with Weft Insertion features the GrandStar® Command System. This system is simple to use. Operators can manage machine settings in real time. The touchscreen interface is clear and responsive. It helps reduce setup time and errors. This makes the weft insertion machine easier to control, even for new users.

Integrated Monitoring

To keep quality high, this machine uses smart monitoring tools. The Laserstop system detects faults instantly. It stops the machine to prevent damage or waste. A built-in camera provides live feedback. It helps operators check fabric quality during production. These tools keep the weft insertion machine running smoothly and reduce downtime.

Precision Yarn Management

Yarn control is key in any knitting process. This machine uses electronically controlled yarn let-off systems. Each warp beam has its own motor. This ensures even thread tension and smooth feeding. The yarn stays in place during fast operation. This is another way the weft insertion machine keeps production accurate and reliable.

Fabric Perfection – Output Handling & Patterning

Fabric Take-Up System

Fabric must be collected smoothly after knitting. This weft insertion machine has a geared motor and four rollers. These parts work together to guide the fabric gently. This prevents stretching and misalignment. The result is clean, even rolls of finished fabric.

Batching Device

After weaving, the fabric goes to the batching device. This is a floor-standing system that rolls the fabric neatly. It is easy to operate and helps save space. It also improves workflow by keeping output organized. This system supports long production runs with less need for manual handling.

Pattern Drive Options

This machine offers creative freedom. It includes a standard N-Drive with three pattern discs. For more control, the optional EL-Drive adds three motors. This lets guide bars move up to 50 mm. With the upgrade, that range extends to 80 mm. These pattern options give the weft insertion machine a strong edge in design variety.

Technical Powerhouse

Electrical Reliability

The machine needs stable power to perform well. It runs on a 25 kVA load and 380V three-phase supply. The wiring is strong and well-built. This setup helps avoid power issues. It also ensures that every part of the weft insertion machine gets enough energy to function properly.

Oil Supply & Cooling

Keeping the machine cool is important. This weft insertion machine uses an oil/water heat exchanger. It controls the temperature during operation. This prevents overheating and extends the machine’s life. With proper cooling, the machine stays in top condition even during long shifts.

Installation & Training

Installing the machine is quick and easy. The company offers on-site training, video tutorials, and online support. Teams around the world help customers start fast and run smoothly. This support system makes sure users get the best from their weft insertion machine.

Designed for Versatility – Real-World Applications

Fashion and Performance

The machine is perfect for high-end fashion. It makes fine fabrics for dresses, gowns, and stylish outfits. It also produces stretchable materials used in sportswear. With a weft insertion machine, designers get quality and flexibility in one.

Technical and Home Textiles

This machine works well in technical textile production. It creates materials used in filters, safety gear, and more. It is also ideal for home textiles. Curtains, cushions, and upholstery can all be made with precision. The weft insertion machine handles many fabric types with ease.

Automotive Interiors

Automotive interiors need tough and smooth fabrics. This machine delivers both. It creates strong seat covers and headliners. It also makes trim materials for car doors and dashboards. With the weft insertion machine, manufacturers meet both style and safety needs in the auto sector.

Connect with Us – Let Innovation Power Your Production

Discover how the Tricot Machine with Weft Insertion can transform your workflow. With unmatched speed, precision, and versatility, this advanced weft insertion machine is built for today’s fabric demands. Whether you’re in fashion, technical textiles, or automotive, it delivers consistent, high-quality results.

Contact us today to learn more, request a demo, or get expert support tailored to your production needs. Let innovation weave your success.
