3-Guide-Bar Tricot Machine for Apparel Textiles-Outerwear: Precision Shogging for Consistent Textures

April 19, 2026

Tricot Machine for Apparel Textiles-Outerwear has come a long way from a basic knitting tool, to an asset that is majorly responsible for the quality of fabric, efficiency during production, and fabric waste levels. In 2026, apparel buyers and textile mills will be under pressure to produce fabrics with consistent textures and to do so with minimal quotas.

Grand Star Technology’s 3-guide-bar tricot machine with precision shogging can rival fabric and speed integrity for the ability to control patterns and to produce fabrics with the needed integrity.

The Importance of Texture Consistency in 2026

The ability to create a restricted variance in fabric surface greater than 2% per batch is mandated by global outerwear brands. If apparel textiles-outerwear tricot machines cannot produce rolls of fabric with consistent texture, supply contracts will be lost and supply relationships will be damaged. The 3-guide-bar machines offer great flexibility in patterns, and a great stability. It is for these reasons the preference for mills producing performance outerwear, softshell fabrics, and breathable membranes.

Key advantages of consistent texture control include:

•  Reduced rejection during inspections. Failures during material inspections and analyses drop.
•  Improved adhesion of dye and coating. Better and consistent design through even uptake of chemical and dye.
•  Speedier acceptance from buyers. Drops in the cycles are seen when consistent repeats are positioned throughout.

Each of these integrated mechanisms and systems has a role to play, and each has their own contribution, to the extent of producing The ‘Tricot Technology’ of Grand Star Technology’s isolation for the weaving system. 3-guide-bar configuration is highlighted for its mechanical stability and flexibility per the patterns, thus is preferred for performance fabrics, breathable membranes and softshell fabrics.

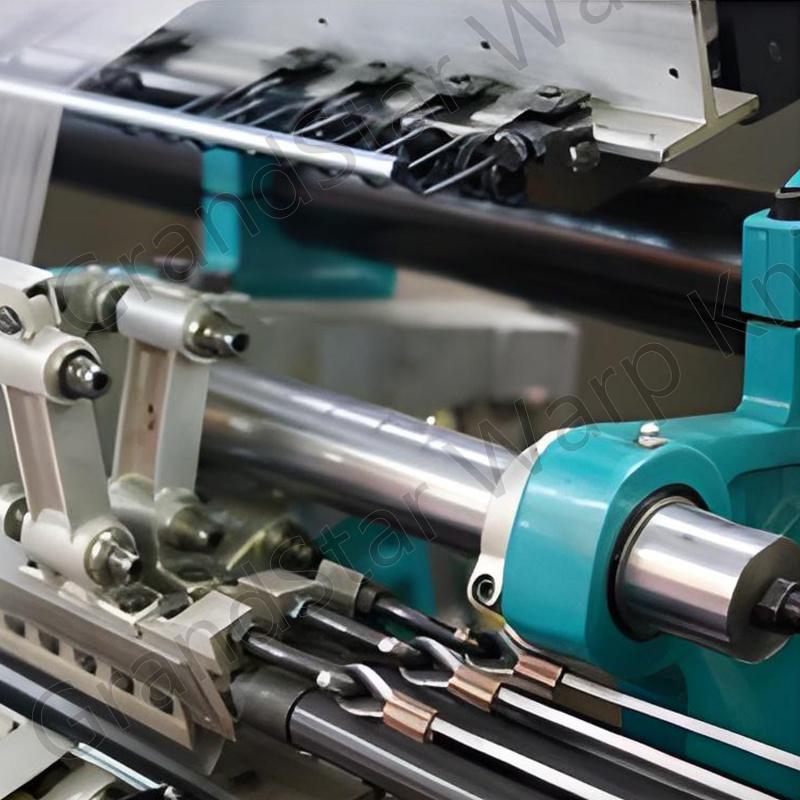

Precision Shogging Mechanism: Consistency in Texture

The Shogging movement of the guide bar largely determines how long the yarns extend between the guide bars of the needle bar. In a 3-guide-bar tricot machine, three guide bars can shift laterally at designated distances. Grand Star’s digital control of the shogging system ensures thatShogging a distance is repeatable with a margin of error of only three microns, both at cross stitch and at consecutive shift.

•  Impacts of precision shogging on texture consistency.
•  Endless Repeatability: The shogging patterns are recorded in the machine’s memory, ruling out possibility of human error at the shogging stage.
•  Predictability for Controlled Surface Roughness: Shogging operators can control roughness/flatness to deeper or shallower degrees.
•  Changeovers: Fabric design changeovers have no risk of unplanned mechanism variations.

The control Gran Star provides is unparalleled in shell fabrics because the performance, feel, and appearance of outerwear fabrics depend on the need for outerwear in a given climate.

Advanced Needle System: A Stitch Level Control

Even the most superior shogging mechanism would not ensure consistency in surface texture without an equally dependable needle system. Gran Star’s tricot machine deploys compound needle bars. A compound needle comprises a latchless needle and a closing wire, and shogging to close the needle loop. Cleaning this compound needle set allows the machine to stitch gaps, and thus provides the additional control the machine requires.

Benefits of outerwear tricot machine with an advanced needle system:

•  The advanced needle system provides the highest performance with the least impact on the feel of the fabric during tricot applications.
•  Each stitch holds the fabric without gaps and without breakage, even with the most uniform tricot surfaces from  micro-velour to flat tricot.
•  Reduced needle wear: The design of the compound needle means needles need changing less often and the textural quality of the fabric takes less of a hit while the intervals between replacements lengthens.

For mills with 24-hour operational cycles, the functionality of this design means costs per kilogram decreases and production output becomes even more predictable.

Variation Control of Fabric Take-Up and Let-Off

In consistency of texture is a result of lack of evenness of yarn tension. When producing textiles for either lining or outer shells of clothes, a tricot machine needs to provide the same amount of yarn tension from the warp beam to the take-up roller. With even tension control of the fabric take-up system, Grand Star ensures even tension along the fabric width. At the same time, the variable let-off mechanism balances guide-bar spacing jump tensions throughout the knitting cycle.

The importance of even texture yarn control:

•  Prevents wavy or baggy contour distortion: Tension let-off control helps with the variation of wavy or baggy ends of the fabric.
•  Prevents texture patches: Control of yarn tension helps with control of jump tension length, producing shorter, more evenly textured fabric.
•  Decreases stop/start marks: Control and power distribution of the system means jump tension speed is unidirectional.

For outer shells with high-tension yarn, even more fragile fabrics. Each of the above-mentioned areas of tension control is of even greater significance.

Integrated Monitoring: Zero-Defect via Laserstop & Camera

True and unblemished control of the system requires feedback almost instantaneously. The Laserstop and provisions for high-precision camera systems have been incorporated by Grand Star into the system for uninterrupted quality control. Each and every instance of yarn breakage or the machine needle stopping is a direct signal to the system. In terms of the fabric, the control system provides unblemished quality and immediate stopping of the machine to loss of tension.

Integration of monitoring provides texture consistency through several key areas:

•  Instant error detection: Operators using GrandStar® HMI can identify the location and type of error.
•  Waste prevention: The system halts the production of defects before errors can spread across miles of fabric.
•  Adjustments based on data: Previous monitoring data can precisely adjust shogging and tension for future iterations.

For buyers prioritizing traceability, this functionality presents documented evidence of quality assurance throughout the entire manufacturing process.

GrandStar® COMMAND SYSTEM: Human-Centered Automation

Progressive hardware calls for design-forward software. The GrandStar® Command System provides an HMI that simplifies operability for all electronic functions, including shogging, let-off, and take-up tension controls, and monitoring threshold. Operators can seamlessly change fabric recipes (within minutes, not hours) through a stored profile system that assures texture consistency every time they load a pattern.

Key benefits of the solution include:

•  Recipe-based production: Users can save and load complete settings for the entire machine for every fabric type.
•  Real-time diagnostics: Users can inspect tension graphs, shogging accuracy, and view the machine’s cameras all simultaneously.
•  Remote support: Grand Star’s engineers can support any troubleshooting directly, reducing downtime and eliminating the need for an on-site visit.

How Performance and Energy Efficiency are Balanced

Sustainability is a necessity. The speed-regulated drive system allows the machine to use less power (for each kilogram of fabric produced) at certain loads. The drive adjusts the speed of the motor according to the machine’s load, ensuring no energy is wasted when the machine is not producing to the fullest extent. Less energy use leads to less wasted burn and positively impacts the machine, as well as the factory’s overall cooling.

Energy efficiency makes an impact.

•  Your sustainability audits will show a lower carbon footprint per batch.

•  Each production session saves your company money.

•  Makes the workspace a nice place to be.

Grand Star Technology: Ready for the Future

Construction started on the advanced R&D facility in 2026!

Since 2008, Grand Star Technology has designed and manufactured cutting-edge warp knitting technology. They have 2-5 bar tricot, raschel, lace, stitch-bonding and warping machines. They have a strong reputation for reliability, energy efficiency, and practical automation. At the 2025 ITMA in Singapore, Grand Star demonstrated 3-guide-bar tricot knitting using in-process monitoring. This got positive feedback from the outerwear audience on the advanced pattern capabilities balanced by operational stability.

Apparel textile manufacturers value consistency most in an investment of a tricot machine for apparel textile-outerwear. Grand Star’s advanced needle systems, and time saved due to automation.

Contact Grand Star Technology to request specs or to welcome you for a private demonstration at our factory.

FAQ

Q: What can a 3-guide-bar tricot machine create for outerwear?

A: It can create soft shell linings, breathable membranes, mesh, stable shell fabrics, and technical outerwear fabrics.

Q: How can precision shogging produce more in less time?

A: It streamlines production by reducing manual steps and time for adjustments, creation of trial runs, and time for adjustments to ensure repeatable texture.

Q: Does the GrandStar® COMMAND SYSTEM operate along with mill software?

A: Yes, it is designed to work with most production management systems and uses standard data export formats.

Q: What is required of the advanced needle system in the maintenance department?

A: Maintenance of the advanced needle system goes above the compound needles and latch needles, as they only need to be checked after 2,000 to 3,000 operating hours.

Q: Can the machine run sustainable or recycled yarns without quality loss?

A: Yes, sustainable and recycled yarns that have shifting properties do not compromise the quality standards of the system, because of the electronic let-off and take-up systems that maintain constant tension along yarns with shifting properties.
