From Pattern Discs to Perfect Drape: Pattern Control on the Tricot Machine for Home Textiles-Net curtain

April 20, 2026

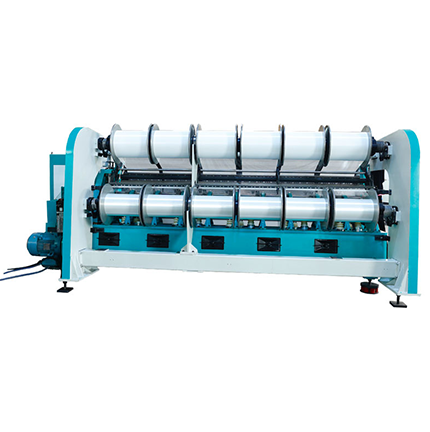

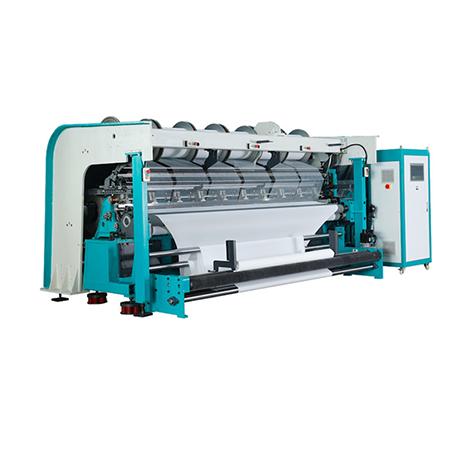

When a net curtain fails to drape evenly, the problem rarely lies with the fabric itself. More often, it traces back to inconsistent pattern formation during warp knitting. For manufacturers who struggle with wavy edges, distorted mesh, or uneven fall, the solution starts with one machine: the Tricot Machine for Home Textiles-Net curtain from Grand Star. This machine transforms raw yarn into net curtains with crisp, clear patterns and precise drape, pattern control using traditional pattern discs, and intelligent automation.

Why Pattern Control Defines Net Curtain Quality

Net curtains are judged by two visible characteristics: pattern clarity and drape consistency. A poorly controlled pattern leads to:

•  Bowing and Skewing: This change in the mesh structure causes a wavy appearance.
•  Uneven Fabric Take-up: Some areas of the fabric stretch, and others don’t, resulting in poor drape.
•  Repetitive Defects: A defect occurring every repeat of the pattern leads to a complete wasted roll of curtains.

The Tricot Machine for Home Textiles-Net curtain from Grand star tackles this problem using a pattern controlled system for home textiles, which they call N-Drive. This system excels in home textiles where the appearance is just as important as the product’s structural strength.

N-Drive: Precision Control for Digital Production Patterns

The N-Drive system powers pattern control on Grand Star’s tricot machines. Each N-Drive system provides the following:

•  Two mechanism patterns: offer consistent, repeatable, and precise mechanical pattern mechanism storage
•  Integrated tempi change gear: allows for swift, on-the-fly, pattern density changes without the need for stoppages
•  Mechanical stability: N-Drive systems offer better results through pattern consistency in the case of voltage and electromagnetic interference.

This is beneficial for net curtain manufacturers, because once one of the pattern mechanism’s discs has been cut and the net is being produced, the pattern repeatability is always the same for the following thousands of meters.

The Flight of Disc Patterns

The path taken by patterns on discs and their relation on draped fabrics can be summarized into three main sections:

•  Pattern disc defines stitch sequence. Each rotation of the pattern disc causes the guide bars to alternate
•  Diffusion of pattern density is controlled by the tempi change gear: operators can control adjustment of pattern repeats without recutting pattern discs by altering gear ratios.
•  Formation is through usage of pattern: the guide bars execute the pattern with minimal vibration of the formation to ensure minimal vibration, and other guides to the guide.

With net curtains, draping occurs uniformly, vertically, and with a professional appearance, especially with the net curtains manufacturers on  Grand Star tricot machines.

Why Grand Star Retains Mechanical Pattern Control in a Digital Age

Many machine builders have abandoned pattern discs entirely, moving to fully electronic systems. However, experienced net curtain producers know a secret: pure electronic pattern drives can drift over time, especially in mills with unstable power or high ambient temperatures. Grand Star’s approach offers the best of both worlds:

•  Reliable mechanical foundation: The N-Drive’s pattern discs ensure absolute repeatability, independent of software glitches
•  Digital upgrade path: For manufacturers ready to go fully electronic, Grand Star offers Electronic Let-off (EL) retrofit solutions that support over 80,000 lines per process file
•  Hybrid operation: Run mechanical pattern discs for long-run standard designs, and switch to electronic patterns for short-run custom orders

This flexibility makes the Tricot Machine for Home Textiles-Net curtain equally suitable for high-volume commodity net curtains and low-volume, high-variety decorative panels.

Practical Pattern Setup for Net Curtain Manufacturers

Setting up a new pattern on Grand Star’s tricot machine follows a logical workflow:

•  Mount the pattern discs: Two discs are installed on the N-Drive unit, each cut to the required pattern profile
•  Select the tempi change gear: Choose the gear ratio that matches desired pattern density (shorter repeats for fine mesh, longer repeats for open structures)
•  Input pattern data via GrandStar® Command System: The intuitive operator interface allows fine-tuning of guide bar overlap/underlap settings
•  Run a test length: The integrated camera and Laserstop system verify pattern accuracy before full production begins
•  Monitor tension via electronically controlled yarn let-off: Each warp beam position maintains uniform thread delivery, preventing pattern distortion caused by tension variation

Real-World Results: What Pattern Control Delivers on the Factory Floor

Manufacturers using the Tricot Machine for Home Textiles-Net curtain report measurable improvements in net curtain quality:

•  Reduced bowing: Pattern distortion reduced by up to 60% compared to older machines without dedicated pattern drives
•  Faster changeovers: Switching between pattern discs takes less than 15 minutes, versus hours for re-programming some fully electronic systems
•  Lower defect rates: Laserstop combined with precise pattern control cuts fabric rejection rates by an average of 35%
•  Consistent drape from roll to roll: The N-Drive’s mechanical repeatability ensures every roll matches the approved sample

2026 Design Trends and the Role of Pattern Control

Home textile buyers in 2026 are demanding three things from net curtain suppliers:

•  Micro-pattern variety: Fine, complex geometries that require high gauge (E32) and precise pattern execution
•  Sustainable production: Less waste from pattern-related defects directly supports eco-certification goals
•  Shorter runs with faster turnaround: Pattern discs enable quick changeovers without complex software reconfiguration

Grand Star’s Tricot Machine for Home Textiles-Net curtain addresses all three trends. The E32 gauge option produces delicate, high-density patterns that appeal to premium buyers. The N-Drive’s mechanical reliability reduces waste. And the ability to store multiple pattern discs means switching between designs takes minutes, not hours.

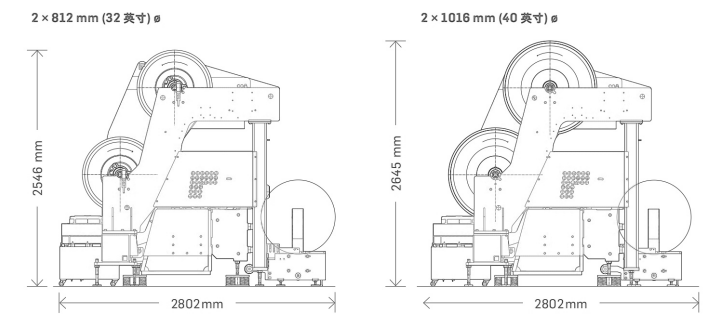

Supporting Specifications for Pattern-Driven Production

To achieve perfect drape, pattern control must work in harmony with other machine systems. Grand Star provides:

•  Working widths up to 8636 mm (340″): Wide enough for seamless king-size net curtain panels
•  Gauges E28 and E32: E28 for standard net curtains, E32 for ultra-fine, sheer designs
•  Electronically regulated fabric take-up: Geared motor with four rollers ensures the fabric advances exactly as the pattern dictates
•  Separate floor-standing batching device: Collects finished net curtains without tension spikes that could distort the pattern

Final Thoughts: Pattern Control as a Competitive Advantage

In a crowded home textile market, pattern clarity and drape quality are the easiest ways to stand out. Buyers can feel a poorly controlled net curtain the moment they pull it from the package. By investing in a Tricot Machine for Home Textiles-Net curtain with the N-Drive pattern system, manufacturers gain a repeatable, reliable, and remarkably flexible tool for producing net curtains that impress at first glance and perform over years of use.

Grand Star Technology combines decades of warp knitting experience with modern engineering touches—carbon-fiber guide bars, Laserstop monitoring, and the GrandStar® Command System—all wrapped around a pattern control system that respects both tradition and innovation. Whether you run standard designs on pattern discs or explore electronic patterns with the EL retrofit, the result is the same: net curtains that drape perfectly, every time.

Ready to upgrade your net curtain production? Reach out to Grand Star Technology to customize the N-Drive pattern system to your gauge, width, and design specifications.

FAQ

Q: Can Tricot Machine Home Textiles-Net curtain integrate pattern discs and electronic patterns?

A: Yes. N-Drive provides mechanical pattern discs for long run reliability. Grand Star has an Electronic Let-off (EL) retrofit for full digital patterning with up to 80,000 lines per file.

Q: How does pattern control affect net curtain drape?

A: Lean pattern control gets rid of bow and uneven stitch formations and makes the drape of the fabric straight and consistent.

Q: What is the ideal gauge for fine mesh net curtains on this machine?

A: E32 is recommended for ultra, fine and sheer, net curtains, and E28 is ideal for general home textile applications.

Q: How long does it take to swap pattern discs on the N-Drive?

A: Usually under 15 minutes in total, including pattern disc mounting and the adjustment of a tempi change gear.

Q: Does Grand Star offer pattern setup training?

A: Yes. There is on-site and remote training with the GrandStar® Command System, along with local service support in main markets.
